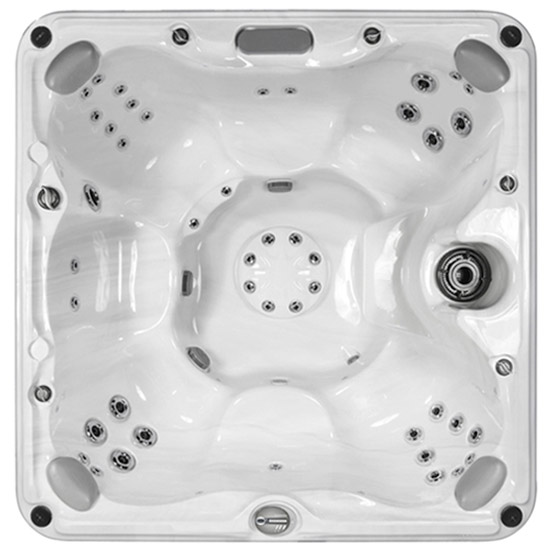

Sundance McKinley™

680™ Series

SPECIFICATIONS

Seats: 6-7 adults
Dimensions:* 7’5” x 7’5” x 37.5” (226 cm x 226 cm x 96 cm)
Dry Weight: 778 lbs (353 kg)
Total Filled Weight: 5,115 lbs (2,320 kg)
Average Spa Volume: 410 US gal (1,552 liters)
Jet Pumps: Pump 1 North America 2-speed/2.5 hp continuous
Pump 2 North America 1-speed/2.5 hp continuous
Total Jets 44
DVR Jets: 6
DX Jets: 10
DL Jets: 19
DXL Jets: 6
DVX Jets: 2
DST Jets: 1
Air Control/Massage Selectors: 4 Controls / 1 Selector
Water Purification System: CLEARRAY®
Filter: 50 sq ft.
Circulation Pump: 2 jet pumps
Electrical Requirements: North America (60 Hz): 240 VAC @ 40A, 50A or 60A
Export (50 Hz): 230 VAC @ 20A, 30A or 40A
Lighting: Multicolor LED Lighting
Stainless Steel Jet Trim: 44 with stainless steel trim
Headrests: 4
Heater: 5.5 kW Low Flow
Water Feature: Variable Flow Waterfall
Stereo: Optional BLUEWAVE(TM) Spa Stereo System
Shell Colors: Porcelain, Celestite, Platinum, Oyster, Sahara, Sandstone, Copper Sand, Monaco, Caribbean Surf, Midnight
Cabinetry: Coastal, Mahogany, Autumn Walnut

Overview

The spacious McKinley® spa offers room for up to seven adults. Delivering total relaxation and value, its classic hydrotherapy experience makes you feel good long after leaving the water.

Throughout this 680™ Series spa, configurations and jet formations soothe muscles and release knots to renew your body. A cool down seat makes it easy to soak and socialize without completely leaving the water’s comforting warmth. And, thanks to classic jets nestled into a foot dome, your feet can find relief from almost any seat in the spa.
