MONTEREY™
Freeflow® Collection
EXCURSION®
Freeflow® Collection
APTOS™
Freeflow® Collection
AZURE™
Freeflow® Collection
MINI™
Freeflow® Collection
Distinctive Features
Durable, portable, and easy-to-own, the Freeflow Collection delivers
Plug-N-Play convenience backed by the trusted Hot Spring® name.

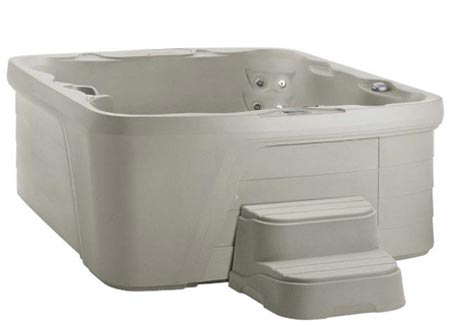

MONTEREY™
Built for larger groups, the roomy Monterey seats up to five and features 40 hydrotherapy jets, a multicolor LED light, and a soothing waterfall.
People: 5 Seats
Seating: Open
Voltage: 115 V Plug-N-Play, 230 V Convertible
Size: 6’6″ x 6’6″ x 34″ | 198 cm x 198 cm x 86 cm
Water Care: FROG® Sanitizing System Ready
Jet Count: 40
KEY SPECIFICATIONS
Total Seats: 5
Lounge Seat: ⓧ
Dimensions: 6’6″ x 6’6″ x 34″, 198 cm x 198 cm x 86 cm
Water Care System: FROG® Sanitizing System Ready
Voltage: 115 V Plug-N-Play, 230 V Convertible
Water Capacity: 265 g, 1025 L
Dry Weight: 425 lb., 195 kg
Filled Weight*: 3515 lb., 1620 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 40
Jet Types: 8 – Ultra Mini, 26 – Mini, 6 – Twin Pulse
Comfort Control®: ⓧ
SmartJet® System: ⓧ
Jet Pump 1: 2-Speed 1.5 HP
Jet Pump 2: ⓧ
Jet Pump 3: ⓧ
CLEAN WATER
100% No-Bypass Filtration: ⓧ
High-Flow Tri-X® Filters: ⓧ
Dual-Action Filtration: ⓧ
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 50 sq. ft.
Water Care System: FROG® Sanitizing System Ready
Circulation Pump: ⓧ
Floor Drain: ⓧ
ENERGY EFFICIENCY
Insulation: Spray-In Full Foam
Heater: 1000 W/115 V or 4000 W/ 230 V
Patented Pump Shroud: ⓧ
Custom-Fit Insulated Cover: WeatherPro™ 4″ Tapered Core with Hinge Seal
Bottom Seal
Energy Standards: Certified to California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: LCD Screen
Diagnostic/Ready Light: ⓧ
DESIGN
Cabinet Colors: Diamond Weave (Smoke or Dune), Mosaic (Smoke or Dune)
Shell Colors: Smoke (rotomolded), Dune (rotomolded)
Cover Colors: Gray, Cocoa, Black
Water Feature: Waterfall
Lighting System – Interior: Footwell Multi-Color Light
Lighting System – Exterior: 2 External Lights
Polymeric Substructure: ⓧ
ACCESSORIES
Smart Spa Technology: ⓧ
Smart Monitoring System: ⓧ
Cover Lifters: Low Mount Spa Cover Lifter
Steps: Freeflow Collection Straight Step
Wireless Music System: ⓧ
Subwoofer: ⓧ
Ozone System: Optional
WARRANTY
Structure: 5 Years
Shell Surface: 5 Years
Cabinet: 2 Years
No-Leak Plumbing: 1 Year
Component Warranty: 1 Year

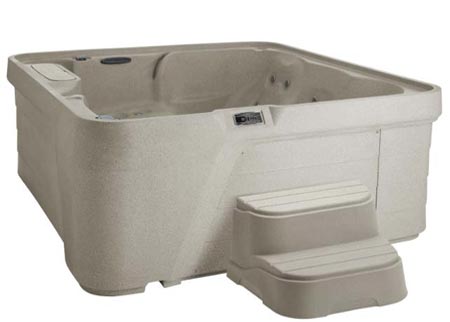

Excursion®
Relaxing with family or friends. Featuring 33 jets, a waterfall, corner pillows, and LED lighting, it brings comfort and connection home.
People: 4 Seats
Seating: Lounge
Voltage: 115 V Plug-N-Play, 230 V Convertible
Size: 6’6″ x 6’6″ x 34″ | 198 cm x 198 cm x 86 cm
Water Care: FROG® Sanitizing System Ready
Jet Count: 33
KEY SPECIFICATIONS
Total Seats: 5
Lounge Seat: ✔
Dimensions: 6’6″ x 6’6″ x 34″, 198 cm x 198 cm x 86 cm
Water Care System: FROG® Sanitizing System Ready
Voltage: 115 V Plug-N-Play, 230 V Convertible
Water Capacity: 265 g, 1025 L
Dry Weight: 425 lb., 195 kg
Filled Weight*: 3515 lb., 1620 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 33
Jet Types: 8 – Ultra Mini, 21 – Mini, 4 – Twin Pulse
Comfort Control®: ⓧ
SmartJet® System: ⓧ
Jet Pump 1: 2-Speed 1.5 HP
Jet Pump 2: ⓧ
Jet Pump 3: ⓧ
CLEAN WATER
100% No-Bypass Filtration: ⓧ
High-Flow Tri-X® Filters: ⓧ
Dual-Action Filtration: ⓧ
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 50 sq. ft.
Water Care System: FROG® Sanitizing System Ready
Circulation Pump: ⓧ
Floor Drain: ⓧ
ENERGY EFFICIENCY
Insulation: Spray-In Full Foam
Heater: 1000 W/115 V or 4000 W/ 230 V
Patented Pump Shroud: ⓧ
Custom-Fit Insulated Cover: WeatherPro™ 4″ Tapered Core with Hinge Seal
Bottom Seal
Energy Standards: Certified to California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: LCD Screen
Diagnostic/Ready Light: ⓧ
DESIGN
Cabinet Colors: Diamond Weave (Smoke or Dune), Mosaic (Smoke or Dune)
Shell Colors: Smoke (rotomolded), Dune (rotomolded)
Cover Colors: Gray, Cocoa, Black
Water Feature: Waterfall
Lighting System – Interior: Footwell Multi-Color Light
Lighting System – Exterior: 2 External Lights
Polymeric Substructure: ⓧ
ACCESSORIES
Smart Spa Technology: ⓧ
Smart Monitoring System: ⓧ
Cover Lifters: Low Mount Spa Cover Lifter
Steps: Freeflow Collection Straight Step
Wireless Music System: ⓧ
Subwoofer: ⓧ
Ozone System: Optional
WARRANTY
Structure: 5 Years
Shell Surface: 5 Years
Cabinet: 2 Years
No-Leak Plumbing: 1 Year
Component Warranty: 1 Year

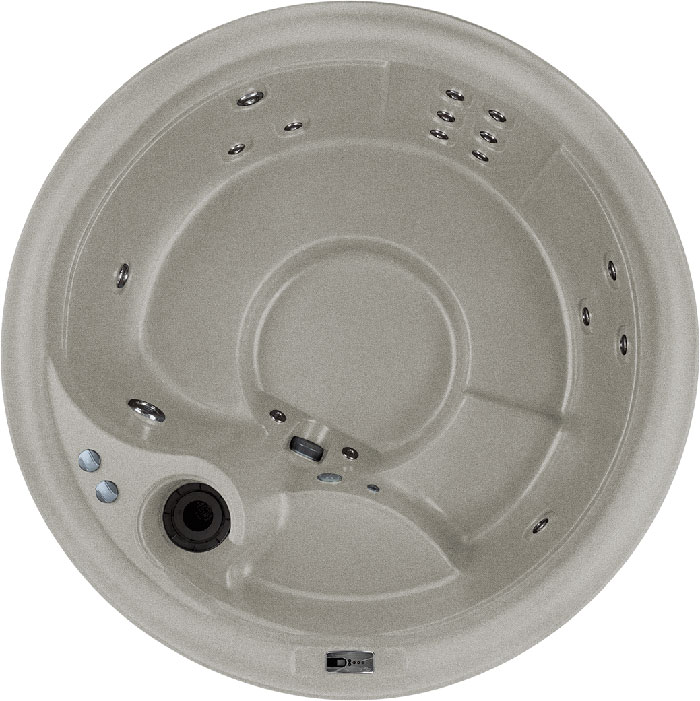

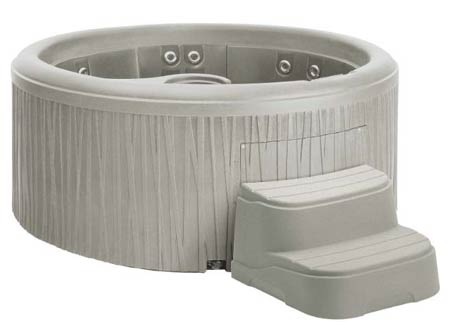

Aptos™
A timeless round-shaped spa, the Aptos comfortably seats up to five adults. With 21 hydrotherapy jets, including a whirlpool jet, this spa is perfect for quiet time for yourself or relaxing with friends.
People: 5 Seats
Seating: Open
Voltage: 115 V Plug-N-Play, 230 V Convertible
Size: 6’6″ Diameter x 33″ H | 198 cm Diameter x 84 cm
Water Care: FROG® Sanitizing System Ready
Jet Count: 21
KEY SPECIFICATIONS
Total Seats: 5
Lounge Seat: ✔
Dimensions: 6’6″ Diameter x 33″ H, 198 cm Diameter x 84 cm
Water Care System: FROG® Sanitizing System Ready
Voltage: 115 V Plug-N-Play, 230 V Convertible
Water Capacity: 265 g, 1025 L
Dry Weight: 360 lb, 165 kg
Filled Weight*: 3450 lb, 1590 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 21
Jet Types: 18 – Mini SS, 2 – Twin Pulse SS, 1 – Turbo Whirlpool
Comfort Control®: ⓧ
SmartJet® System: ⓧ
Jet Pump 1: 2-Speed 1.5 HP
Jet Pump 2: ⓧ
Jet Pump 3: ⓧ
CLEAN WATER
100% No-Bypass Filtration: ⓧ
High-Flow Tri-X® Filters: ⓧ
Dual-Action Filtration: ⓧ
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 50 sq. ft.
Water Care System: FROG® Sanitizing System Ready
Circulation Pump: ⓧ
Floor Drain: ⓧ
ENERGY EFFICIENCY
Insulation: Spray-In Full Foam
Heater: 1000 W/115 V or 4000 W/ 230 V
Patented Pump Shroud: ⓧ
Custom-Fit Insulated Cover: WeatherPro™ 4″ Tapered Core with Hinge Seal
Bottom Seal
Energy Standards: Certified to California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: LCD Screen
Diagnostic/Ready Light: ⓧ
DESIGN
Cabinet Colors: Espresso, Coastal Gray
Shell Colors: Smoke (rotomolded), Dune (rotomolded)
Cover Colors: Gray, Cocoa, Black
Water Feature: Whirlpool
Lighting System – Interior: Footwell Multi-Color Light
Lighting System – Exterior: ⓧ
Polymeric Substructure: ⓧ
ACCESSORIES
Smart Spa Technology: ⓧ
Smart Monitoring System: ⓧ
Cover Lifters: Cover RX Cover Lifter
Steps: Freeflow Collection Curved Step
Wireless Music System: ⓧ
Subwoofer: ⓧ
Ozone System: ✔
WARRANTY
Structure: 5 Years
Shell Surface: 5 Years
Cabinet: 2 Years
No-Leak Plumbing: 1 Year
Component Warranty: 1 Year
Azure™
The Azure offers relaxation and fun for the whole family. With 25 soothing jets, a waterfall, and LED lighting, this 4-person spa is ideal for everyday escapes.
People: 4 Seats
Seating: Lounge
Voltage: 115 V Plug-N-Play, 230 V Convertible
Size: 5’7″ x 6’7″ x 33″ | 170 cm x 201 cm x 84 cm
Water Care: FROG® Sanitizing System Ready
Jet Count: 25
KEY SPECIFICATIONS
Total Seats: 4
Lounge Seat: ✔
Dimensions: 5’7″ x 6’7″ x 33″, 170 cm x 201 cm x 84 cm
Water Care System: FROG® Sanitizing System Ready
Voltage: 115 V Plug-N-Play, 230 V Convertible
Water Capacity: 235 g, 900 L
Dry Weight: 360 lb, 165 kg
Filled Weight*: 3020 lb, 1385 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 25
Jet Types: 8 – Ultra Mini, 13 – Mini, 4 – Twin Pulse
Comfort Control®: ⓧ
SmartJet® System: ⓧ
Jet Pump 1: 2-Speed 1.5 HP
Jet Pump 2: ⓧ
Jet Pump 3: ⓧ
CLEAN WATER
100% No-Bypass Filtration: ⓧ
High-Flow Tri-X® Filters: ⓧ
Dual-Action Filtration: ⓧ
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 50 sq. ft.
Water Care System: FROG® Sanitizing System Ready
Circulation Pump: ⓧ
Floor Drain: ⓧ
ENERGY EFFICIENCY
Insulation: Spray-In Full Foam
Heater: 1000 W/115 V or 4000 W/ 230 V
Patented Pump Shroud: ⓧ
Custom-Fit Insulated Cover: WeatherPro™ 4″ Tapered Core with Hinge Seal
Bottom Seal
Energy Standards: Certified to California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: LCD Screen
Diagnostic/Ready Light: ⓧ
DESIGN
Cabinet Colors: Diamond Weave (Smoke or Dune), Mosaic (Smoke or Dune)
Shell Colors: Smoke (rotomolded), Dune (rotomolded)
Cover Colors: Gray, Cocoa, Black
Water Feature: Waterfall
Lighting System – Interior: Footwell Multi-Color Light
Lighting System – Exterior: 2 External Lights
Polymeric Substructure: ⓧ
ACCESSORIES
Smart Spa Technology: ⓧ
Smart Monitoring System: ⓧ
Cover Lifters: Cover RX Cover Lifter
Steps: Freeflow Collection Straight Step
Wireless Music System: ⓧ
Subwoofer: ⓧ
Ozone System: Optional
WARRANTY
Structure: 5 Years
Shell Surface: 5 Years
Cabinet: 2 Years
No-Leak Plumbing: 1 Year
Component Warranty: 1 Year

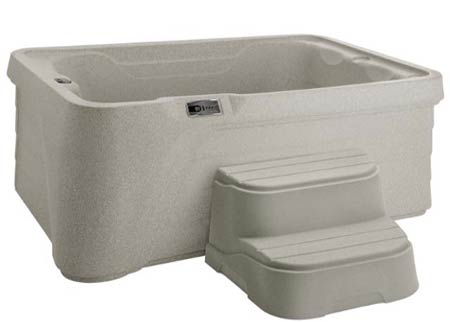

Mini™
Super portable and easy to set up, the two-person Mini fits almost anywhere. With 11 soothing jets and a cozy lounge seat, it’s perfect for small spaces or life on the move.
People: 2 Seats
Seating: Lounge
Voltage: 115 V Plug-N-Play, 230 V Convertible
Size: 6′ x 4’5″ x 29″ | 183 cm x 135 cm x 74 cm
Water Care: FROG® Sanitizing System Ready
Jet Count: 11
KEY SPECIFICATIONS
Total Seats: 2
Lounge Seat: ✔
Dimensions: 6′ x 4’5″ x 29″, 183 cm x 135 cm x 74 cm
Water Care System: FROG® Sanitizing System Ready
Voltage: 115 V Plug-N-Play, 230 V Convertible
Water Capacity: 125 g, 475 L
Dry Weight: 260 lb, 120 kg
Filled Weight*: 1655 lb, 755 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 11
Jet Types: 6 – Mini, 5 – Twin Pulse
Comfort Control®: ⓧ
SmartJet® System: ⓧ
Jet Pump 1: 2-Speed 1.5 HP
Jet Pump 2: ⓧ
Jet Pump 3: ⓧ
CLEAN WATER
100% No-Bypass Filtration: ⓧ
High-Flow Tri-X® Filters: ⓧ
Dual-Action Filtration: ⓧ
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 25sq. ft.
Water Care System: FROG® Sanitizing System Ready
Circulation Pump: ⓧ
Floor Drain: ⓧ
ENERGY EFFICIENCY
Insulation: Spray-In Full Foam
Heater: 1000 W/115 V or 4000 W/ 230 V
Patented Pump Shroud: ⓧ
Custom-Fit Insulated Cover: WeatherPro™ 4″ Tapered Core with Hinge Seal
Bottom Seal
Energy Standards: Certified to California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: LCD Screen
Diagnostic/Ready Light: ⓧ
DESIGN
Cabinet Colors: Diamond Weave (Smoke or Dune), Mosaic (Smoke or Dune)
Shell Colors: Smoke (rotomolded), Dune (rotomolded)
Cover Colors: Gray, Cocoa, Black
Water Feature: ⓧ
Lighting System – Interior: Footwell Multi-Color Light
Lighting System – Exterior: ⓧ
Polymeric Substructure: ⓧ
ACCESSORIES
Smart Spa Technology: ⓧ
Smart Monitoring System: ⓧ
Cover Lifters: Cover RX Cover Lifter
Steps: Freeflow Collection Straight Step
Wireless Music System: ⓧ
Subwoofer: ⓧ
Ozone System: Optional
WARRANTY
Structure: 5 Years
Shell Surface: 5 Years
Cabinet: 2 Years
No-Leak Plumbing: 1 Year
Component Warranty: 1 Year
Accessories
These additions help you get the most out of your Hot Spring spa experience.
